Overview - Oil Pan/Oil Pump: Notes
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Danger Of Catalytic Converter Damage.
- The oil level must not exceed the "MAX" marking.
NOTE:
If Large Quantities Of Metal Particles Or Abraded Material Are Detected During Engine Repairs, It May Mean The Crankshaft Or Rod Bearings Are Damaged. To prevent subsequent damage, the following work must be performed after the repair: Oil channels must be cleaned carefully; replace oil spray jets, engine oil cooler and oil filter.
Oil capacities, specifications and viscosity classes.

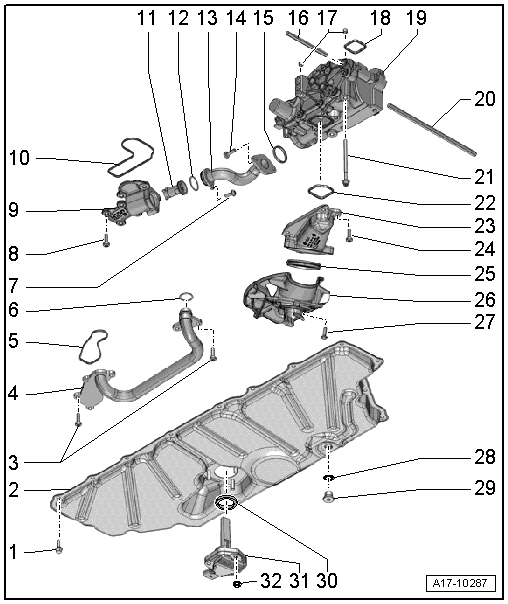

- Bolt
- Tightening specification and sequence. Refer to Figure.
- Oil Pan Lower Section
- Removing and installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .
- Bolts
- 9 Nm
- Oil Pipe
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING, THROUGH VIN CAUA 003 685 or OIL PUMP, REMOVING AND INSTALLING, FROM VIN CAUA 003 686 .
- Seal
- Always replace
- O-ring
- Always replace
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Oil Check Valve Housing
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING, THROUGH VIN CAUA 003 685 or OIL PUMP, REMOVING AND INSTALLING, FROM VIN CAUA 003 686 .
- Seal
- Always replace
- Oil Check Valve
- O-ring
- Always replace
- Oil Pipe
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING, THROUGH VIN CAUA 003 685 or OIL PUMP, REMOVING AND INSTALLING, FROM VIN CAUA 003 686 .
- Bolt
- 9 Nm
- O-ring
- Always replace
- Coolant Pump Driveshaft
- Alignment Sleeves
- Seal
- Always replace
- Oil Pump
- Do not disassemble
- With relief valve approximately 5.5 bar (80 psi)
- Removing and installing: through VIN CAUA 003 685 OIL PUMP, REMOVING AND INSTALLING, THROUGH VIN CAUA 003 685 , from VIN CAUA 003 686 OIL PUMP, REMOVING AND INSTALLING, FROM VIN CAUA 003 686
- Oil Pump Driveshaft
- Bolt
- 8 Nm + 90° turn
- Always replace
- Seal
- Always replace
- Intake Tube
- For the oil pump
- Bolt
- 9 Nm
- Oil Screen
- Clean
- Oil Baffle
- Bolt
- 9 Nm
- Seal
- Always replace
- Oil Drain Plug
- 25 Nm
- Seal
- Always replace
- Oil Level Thermal Sensor -G266-
- Removing and installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
- Nut
- 9 Nm
