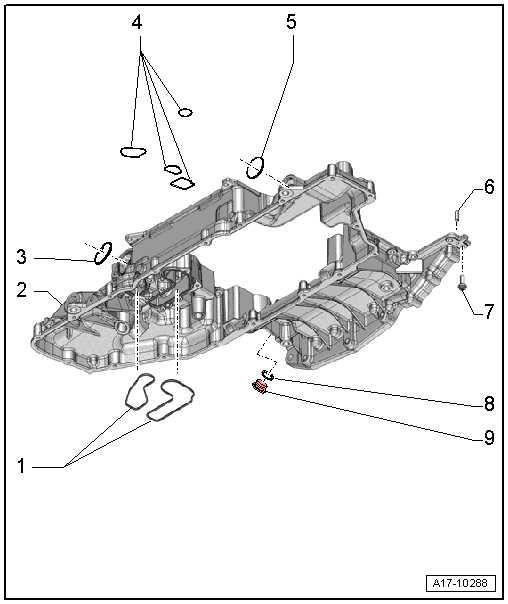

Overview - Oil Pan Upper Section: Notes
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Seals
- Always replace
- Oil Pan Upper Section
- Removing and installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
- O-ring
- Always replace
- Seals
- Always replace
- O-ring
- Always replace
- Alignment Pin
- Quantity: 2
- Bolt
- Tightening specification and sequence. Refer to Figure.
- Always replace
- Seal
- Always replace
- Locking Bolt for the "TDC" Opening
- 35 Nm
- Use a long hex socket wrench with a ball head for removing and tightening
