Oil Pan Lower Section, Removing And Installing: Installing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specification. Refer to Figure.

NOTE:

Replace Sealing Rings.

CAUTION:

Risk Of Contaminating Lubricating System And Bearing.

Cover open parts of engine.

WARNING:

Danger Of Eye Injury.

Wear protective eyewear.

-- Using rotating plastic brush, remove any remaining sealant from lower part of oil pan and upper part.

Fig 1: Identifying Rotating Plastic Brush For Removal Of Sealant From Upper Part Of Oil Pan And Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

-- Clean the sealing surfaces. They must be free of oil and grease.

NOTE:

Note The Expiration Date Of The Sealing Compound.

Fig 2: Cut Tube Nozzle At Front Marking

Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2 mm).

CAUTION:

The Lubrication System Could Be Plugged With Excess Sealant.

Do not apply sealant bead thicker than indicated.

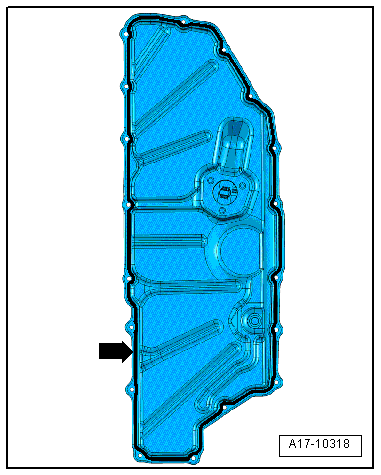

-- Apply a sealant bead -arrow- to the clean sealing surface on the lower part of the oil pan as shown in illustration.

Fig 3: Applying A Sealant Bead To Clean Sealing Surface On Lower Part Of Oil Pan

Courtesy of AUDI OF AMERICA, LLC

Thickness of sealant bead: 2.5 mm.

NOTE:

Install The Lower Section Of The Oil Pan Within Five Minutes Of Applying The Sealant.

-- Position the lower section of the oil pan and tighten the bolts. Refer to Figure.

Fig 4: Disconnecting And Free Up Connector -2- From Oil Level Thermal Sensor -G266-

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Install the stabilizer bar. Refer to STABILIZER BAR, REMOVING AND INSTALLING .

-- Install the front noise insulation. Refer to NOISE INSULATION .

-- Fill with engine oil and check the oil level. Refer to OIL LEVEL, CHECKING
