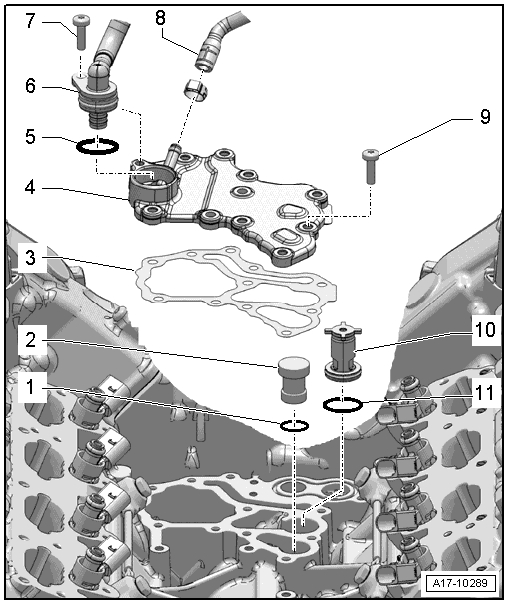

Overview - Oil Spray Jets/Valves
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- O-ring
- Always replace
- Spray Nozzle Valve
- Removing and installing. Refer to OIL SPRAY JETS/VALVES, REMOVING AND INSTALLING .
- Seal
- Always replace
- Cover
- O-ring
- Always replace
- Hose
- For the crankcase ventilation
- Bolt
- 9 Nm
- Oil Return Line
- Bolt
- 9 Nm
- Oil Check Valve
- Removing and installing. Refer to OIL SPRAY JETS/VALVES, REMOVING AND INSTALLING .
- O-ring
- Always replace
