Secondary Air Combination Valve LH

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07679902Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intercooler. < refer to REMOVAL , Intercooler. >
  4. Disconnect the connector from the secondary air combination valve LH.
  5. Disconnect the air duct A.
  6. Remove the secondary air pipe LH.
  7. Remove the secondary air combination valve LH.

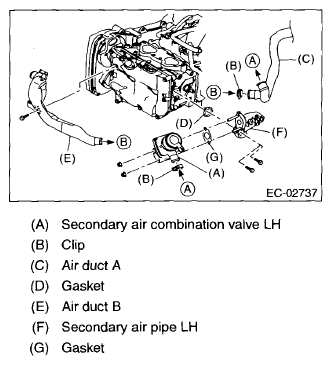

    Fig 2: Identifying Secondary Air Combination Valve, Air Duct, Clip, Gasket And Secondary Air Pipe
    G07679903Courtesy of SUBARU OF AMERICA, INC.
