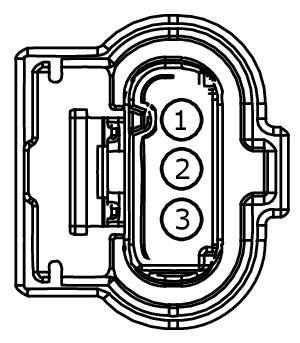

Connector End View C4544 - Rear Outer Parking Aid Sensor LH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REAR OUTER PARKING AID SENSOR LH
COLOR
HARNESS
15K868
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP07 (BU-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR + | |
| 2 | VMP15 (YE-GN) | 20 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | |
| 3 | RMP07 (GN-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1492 |
Service Part Number: HU2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Monitor - Crankcase Ventilation Motor - Intercooler Pump Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Delta Pressure Feedback EGR Sensor - Exhaust Gas Pressure Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Oil Pressure |
