Connector End View C4357 - Rear Parking Aid Camera
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REAR PARKING AID CAMERA
COLOR
BK
HARNESS
PIA
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW

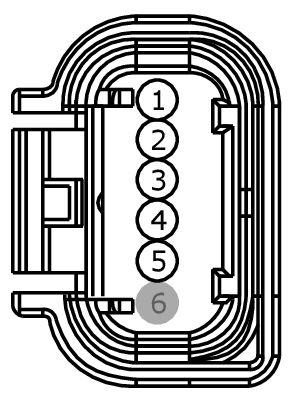

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (*) | * | FUSE - OR CIRCUIT BREAKER | |
| 2 | * (*) | * | CTRL MOD. - LIN BUS # BCM 4 | |
| 3 | * (*) | * | CAMERA - PARKING AID REAR VIDEO - | |
| 4 | * (*) | * | CAMERA - PARKING AID REAR VIDEO + | |
| 5 | * (*) | * | CAMERA - PARKING AID REAR VIDEO D | |
| 6 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1556 |

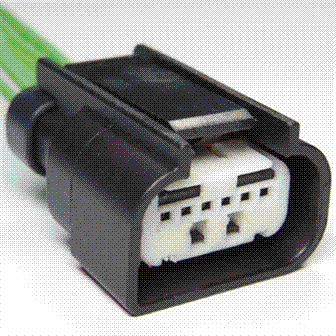

Service Part Number: CU2Z-14S411-AEB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Front Camera - Reverse Park Aid |
| Pigtail Kit Part Number WPT-1280 |

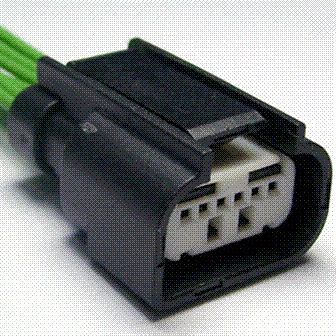

Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Reverse Park Aid |
