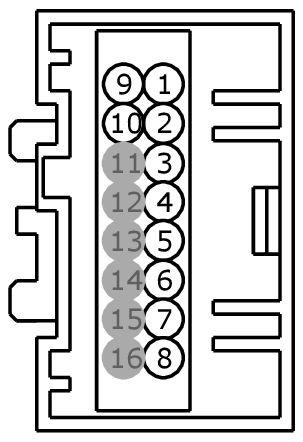

Connector End View C4352 - Illuminated Liftgate Applique
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
ILLUMINATED LIFTGATE APPLIQUE
COLOR
HARNESS
13412
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLS05 (BU-GY) | 18 | CTRL MOD. - PARK LAMPS 1 | |
| 2 | VLS70 (BN) | 22 | CTRL MOD. - LED DRIVER # LAMP DECK LID (PWM3) | |
| 3 | CLS44 (VT-BN) | 22 | CTRL MOD. - STOP | |
| 4 | CLS10 (GN-BN) | 22 | CTRL MOD. - REVERSE LEFT OR COMMON | |
| 5 | CLS44 (VT-BN) | 22 | CTRL MOD. - STOP | |
| 6 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 7 | CPL45 (BN) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE | |
| 8 | CPL60 (BN-YE) | 22 | SWITCH - LIFTGATE GLASS RELEASE | |
| 9 | VDN14 (YE-VT) | 22 | CTRL MOD. - LIN BUS # BCM 6 | |
| 10 | CDC82 (GN-VT) | 22 | CTRL MOD. - VOLTAGE QUALITY # RUN/START OUT | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |
