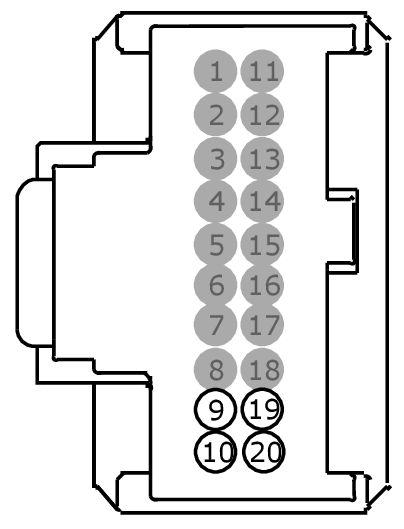

Connector End View C4348A - Audio DIGITALSIGNAL Processing (DSP) Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
AUDIO DIGITALSIGNAL PROCESSING (DSP) MODULE
COLOR
HARNESS
14B644
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME15 (GY-BU) | 18 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT MID RANGE - | |
| 10 | RME01 (GY) | 18 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 - | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | VME15 (GN-BU) | 18 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT MID RANGE + | |
| 20 | VME01 (GN-VT) | 18 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 + |

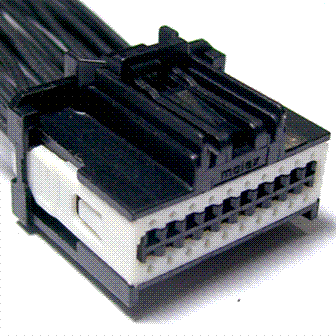

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1447 |
Service Part Number: FU2Z-14S411-ATA Gauge: 20 Pin material: Tin Cavities: 20 Vehicle Uses Camera - Reverse Park Aid Module - Image Processing Radio - Amplifier |
