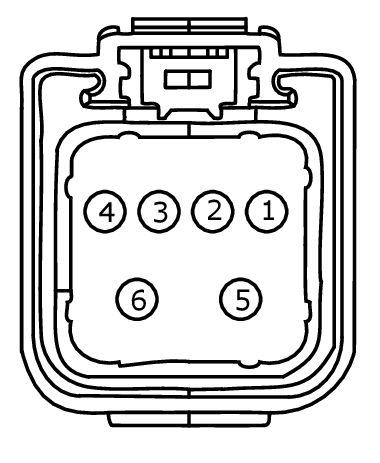

Connector End View C4343A - Rear Blower Motor Control Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REAR BLOWER MOTOR CONTROL MODULE
COLOR
HARNESS
19949
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | VH110 (GN-VT) | 22 | CTRL MOD. - CLIMATE # BLOWER MOTOR REAR CONTROL | |
| 4 | * | * | Not Used | |
| 5 | GD348 (BK-YE) | 10 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 6 | CBB55 (BN-BU) | 10 | FUSE - OR CIRCUIT BREAKER |
