Connector End View C4334 - Rear Blower Motor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REAR BLOWER MOTOR
COLOR
HARNESS
19949
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RH309 (WH-OG) | 12 | CTRL MOD. - BLOWER VARIABLE SPEED # REAR BLOWER MOTOR - | |
| 2 | VH309 (YE-GN) | 12 | CTRL MOD. - BLOWER VARIABLE SPEED # REAR BLOWER MOTOR + |

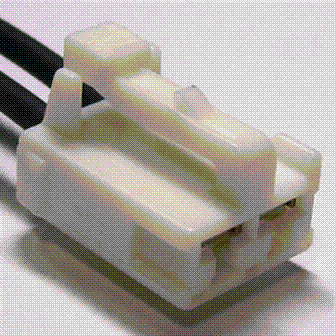

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1347 |
Service Part Number: DU2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Heater/AC Blower (Auxiliary) |
