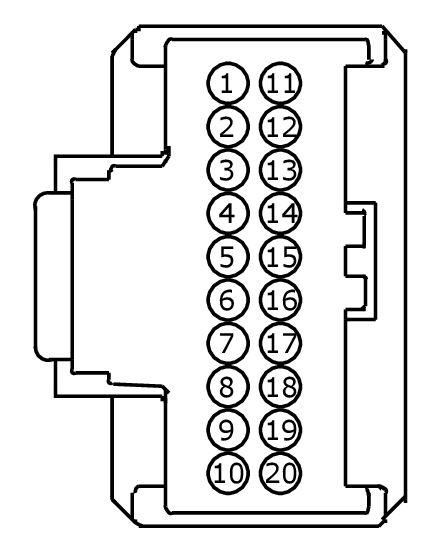

Connector End View C4326A - Audio DIGITALSIGNAL Processing (DSP) Module

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

AUDIO DIGITALSIGNAL PROCESSING (DSP) MODULE

COLOR

HARNESS

14B644

BASE PART #

PART# N/A

SERVICE PIGTAIL

NOT AVAILABLE

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
2	RME12 (BN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -
3	RME06 (GY-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -
4	RME10 (WH-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -
5	RME01 (GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 -
6	RME40 (VT-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR TWEETER -
7	RME07 (WH-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -
8	RME09 (BN-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -
9	RME72 (BU-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -
10	RME39 (GY-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR TWEETER -
11	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
12	VME12 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +
13	VME06 (GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +
14	VME10 (WH-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +
15	VME01 (GN-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 +
16	VME40 (BU-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR TWEETER +
17	VME07 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +
18	VME09 (WH-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +
19	VME72 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 +
20	VME39 (GN-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR TWEETER +
