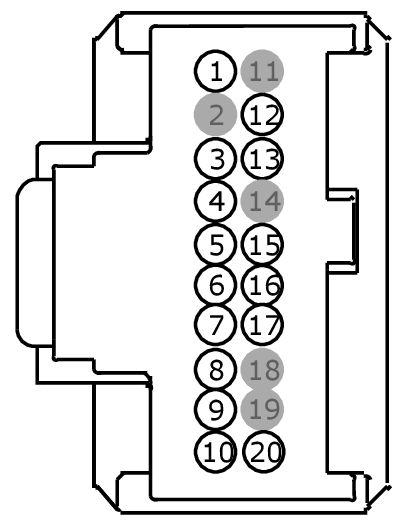

Connector End View C4226A - Parking Aid Module (PAM)

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

PARKING AID MODULE (PAM)

COLOR

HARNESS

13A409

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP36 (BU-BN)	20	FUSE - OR CIRCUIT BREAKER
2	*	*	Not Used
3	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +
4	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS
5	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)
6	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)
7	VMP30 (BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
8	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
9	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
9	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
9	VDB04 (WH-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
10	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -
11	*	*	Not Used
12	CMP32 (GN)	22	SWITCH - ACTIVE PARK ASSIST (AUTOPARK)
13	CMP18 (GN-BN)	22	SWITCH - PARKING AID
14	*	*	Not Used
15	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)
16	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)
17	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE
18	*	*	Not Used
19	*	*	Not Used
20	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Camera - Reverse Park Aid

Module - Image Processing

Radio - Amplifier
