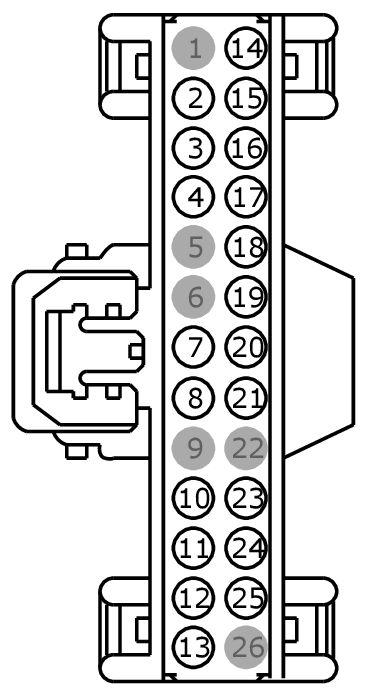

Connector End View C4174B - Liftgate/Trunk Module (LTM)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
LIFTGATE/TRUNK MODULE (LTM)
COLOR
HARNESS
13A409
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CPRE0 (GN-WH) | 22 | LATCH - LIFTGATE # CINCH MOTOR HOME POSITION | |
| 3 | CPR63 (GY-YE) | 22 | SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE | |
| 4 | VPRD5 (GN-BU) | 22 | SENSOR - POWER LIFTGATE DRIVE UNIT 2 # HALL 1 (OPEN IF LEAD) | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VPR53 (BU-WH) | 22 | SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 1 (OPEN IF LEAD) | |
| 8 | VPR54 (BU-BN) | 22 | SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 2 (CLOSE IF LEAD) | |
| 9 | * | * | Not Used | |
| 10 | VPRD6 (GY-BN) | 22 | SENSOR - POWER LIFTGATE DRIVE UNIT 2 # HALL 2 (CLOSE IF LEAD) | |
| 11 | CPR89 (BN-BU) | 22 | SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE #2 (REAR) | |
| 12 | CPR52 (YE-VT) | 22 | SWITCH - POWER LIFTGATE # OBSTACLE DETECT - LEFT | |
| 13 | CPL44 (YE-OG) | 22 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 13 | CPL44 (YE-OG) | 18 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 13 | CPL44 (YE-OG) | 18 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 14 | CPR51 (YE-OG) | 22 | SWITCH - POWER LIFTGATE # OBSTACLE DETECT - RIGHT | |
| 15 | CPL58 (GY-OG) | 22 | SWITCH - LIFTGATE/DECKLID # GLASS AJAR | |
| 16 | CPR66 (GY-YE) | 22 | LATCH - LIFTGATE # RATCHET SWITCH | |
| 17 | CPRC6 (GN-OG) | 22 | CTRL MOD. - LATCH LIFTGATE RATCHET PRIMARY | |
| 18 | CPRC7 (YE-VT) | 22 | CTRL MOD. - LATCH LIFTGATE RATCHET SECONDARY | |
| 19 | CPR55 (GN-BU) | 22 | CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR POWER | |
| 20 | RPR55 (WH-BU) | 22 | CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR RETURN | |
| 21 | RPR52 (VT-GY) | 22 | SWITCH - POWER LIFTGATE # OBSTACLE DETECT - | |
| 22 | * | * | Not Used | |
| 23 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 23 | VDB07 (VT-OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 23 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 24 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 24 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 24 | VDB06 (GY-OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 25 | CPL45 (BN) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE | |
| 26 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1581 |
Service Part Number: KU2Z-14S411-AA Gauge: 20 Pin material: Silver Cavities: 26 Vehicle Uses Control Head - Manual Climate DVD Player Instrument Cluster Junction Box - Smart Module - Audio Control Module - Driver Information Module - Heated Seat (Rear) Module - Liftgate Module - Power Decklid Module - Power Steering Radio Switch - Heater / A/C Blower (Front) Switch - Message Center Switch - Multifunction |
