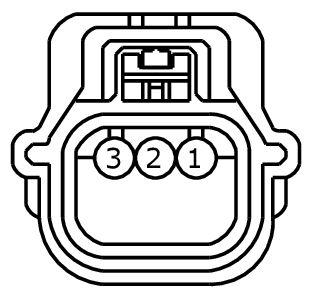

Connector End View C4093 - Rear Suspension Height Sensor RH

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

REAR SUSPENSION HEIGHT SENSOR RH

COLOR

HARNESS

14405

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCD13 (GN-VT)	18	SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) REAR RIGHT
2	RCD26 (GY-BN)	18	CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR RIGHT -
3	LCD26 (VT-GN)	18	CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR RIGHT +

Available Pigtail Kits
Pigtail Kit Part Number WPT-1400 Courtesy of FORD MOTOR COMPANY	Service Part Number: 9U2Z-14S411-CC Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1578	Service Part Number: 9U2Z-14S411-CD Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - License Monitor - Crankcase Ventilation Sensor - Air Quality Sensor - Air Suspension - LH - Front Sensor - Air Suspension - LH - Rear Sensor - Air Suspension - RH - Front Sensor - Air Suspension - RH - Rear Sensor - Front Park Aid (FPA) Sensor - Fuel Tank Pressure Transducer Sensor - Headlamp Leveling Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1315 Courtesy of FORD MOTOR COMPANY	Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
