Connector End View C3816 - Passenger Seat Cushion Extend Motor RH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
PASSENGER SEAT CUSHION EXTEND MOTOR RH
COLOR
HARNESS
14D230
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS46 (VT) | 18 | CTRL MOD. - DRIVER SEAT CUSHION EXTEND | |
| 2 | RPS12 (YE-VT) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | |
| 3 | CPS47 (WH) | 18 | CTRL MOD. - DRIVER SEAT CUSHION RETRACT | |
| 4 | VPSM5 (YE-OG) | 20 | SENSOR - FRONT PASSENGER SEAT CUSHION RIGHT EXTEND/RETRACT |

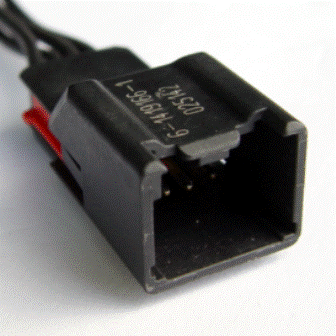

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-394 |
Service Part Number: 3U2Z-14S411-KNA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses Element - Heated Seat Lamp - License |
