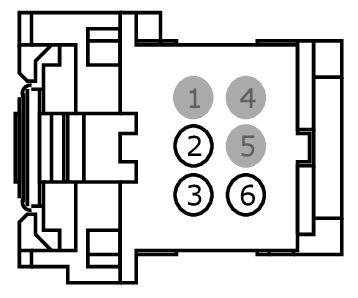

Connector End View C3788 - Second Row Seat Release Easy Entry Switch LH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
SECOND ROW SEAT RELEASE EASY ENTRY SWITCH LH
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 3 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | CPS56 (GN-BN) | 22 | SWITCH - 2ND ROW SEAT RELEASE LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1518 |
Service Part Number: JU2Z-14S411-NA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid / Hatch Release Switch - Lift Gate Shutface Switch - Power Liftgate Switch - Shift By Wire Override |
