Connector End View C3696D - Seat Control Module B (SCMB)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
SEAT CONTROL MODULE B (SCMB)
COLOR
HARNESS
14D230
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW

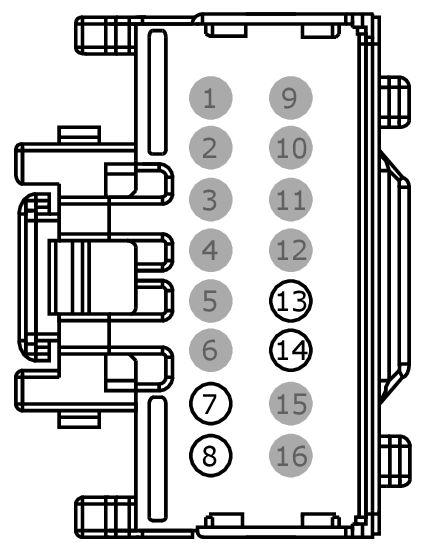

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CPSF3 (VT-BN) | 16 | CTRL MOD. - FRONT PASSENGER SEAT HEAD RESTRAINT AFT | |
| 8 | CPSF2 (GY-BU) | 16 | CTRL MOD. - FRONT PASSENGER SEAT HEAD RESTRAINT FORE | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | |
| 14 | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1565 |

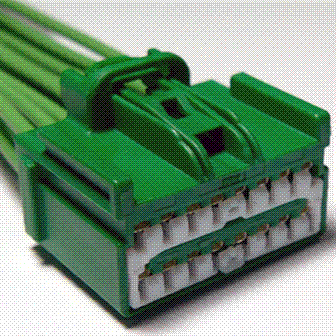

Service Part Number: 3U2Z-14S411-BRAB Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses Connector - Inline Element - Heated Seat Junction Box - Relay Module - Anti-theft Module - Auto Lamps Module - Climate Control Seat Module - Driver Door Module - Remote Keyless Entry Module - Tire Pressure Radio - Amplifier Switch - Power Window - Driver |
| Pigtail Kit Part Number WPT-645 |

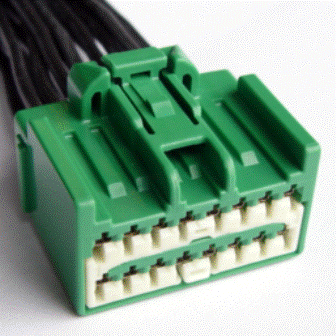

Service Part Number: 3U2Z-14S411-BRAA Gauge: 16 Pin material: Tin Cavities: 16 Vehicle Uses Connector - Inline Element - Heated Seat Module - Anti-theft Module - Climate Control Seat |
