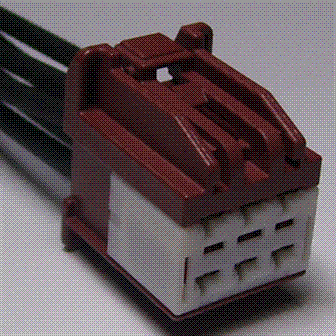

Connector End View C3696B - Seat Control Module B (SCMB)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
SEAT CONTROL MODULE B (SCMB)
COLOR
HARNESS
14D230
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS07 (GY-BN) | 14 | CTRL MOD. - DRIVER SEAT RECLINE INCLINE | |
| 2 | * | * | Not Used | |
| 3 | SBB66 (YE-RD) | 14 | FUSE - OR CIRCUIT BREAKER | |
| 4 | CPS08 (VT-OG) | 14 | CTRL MOD. - DRIVER SEAT RECLINE RECLINE | |
| 5 | * | * | Not Used | |
| 6 | SBB66 (YE-RD) | 14 | FUSE - OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1335 |
Service Part Number: DU2Z-14S411-JA Gauge: 12 Pin material: Tin Cavities: 6 Vehicle Uses Inverter - DC to AC |
