Connector End View C3672B - Vehicle Dynamic Module (VDM)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
VEHICLE DYNAMIC MODULE (VDM)
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW

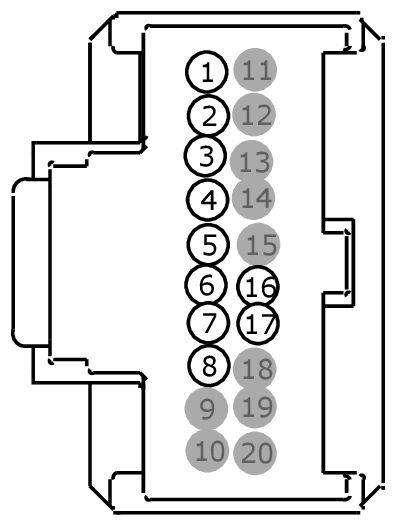

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CCD06 (VT-GY) | 18 | CTRL MOD. - CCD # SOLENOID DAMPER REAR RIGHT + | |
| 2 | RCD06 (BU-BN) | 18 | CTRL MOD. - CCD # SOLENOID DAMPER REAR RIGHT - | |
| 3 | CCD05 (GN-BU) | 18 | CTRL MOD. - CCD # SOLENOID DAMPER REAR LEFT + | |
| 4 | RCD05 (YE-BU) | 18 | CTRL MOD. - CCD # SOLENOID DAMPER REAR LEFT - | |
| 5 | RCD25 (GY) | 18 | CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR LEFT - | |
| 6 | LCD25 (GN-WH) | 18 | CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR LEFT + | |
| 7 | LCD26 (VT-GN) | 18 | CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR RIGHT + | |
| 8 | VCD13 (GN-VT) | 18 | SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) REAR RIGHT | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | VCD12 (VT-WH) | 18 | SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) REAR LEFT | |
| 17 | RCD26 (GY-BN) | 18 | CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR RIGHT - | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1449 |
Service Part Number: FU2Z-14S411-ASA Gauge: 20 Pin material: Tin Cavities: 20 Vehicle Uses Radio - Amplifier |
