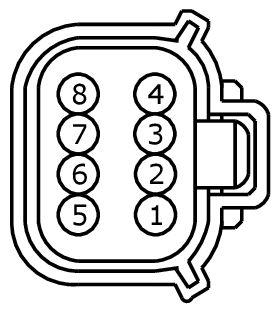

Connector End View C3646 - SEATBELT Inflator, Second Row LH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
SEATBELT INFLATOR, SECOND ROW LH
COLOR
HARNESS
14B687
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VDN13 (BN) | 22 | CTRL MOD. - LIN BUS # BCM 5 | |
| 2 | CBX07 (GN-RD) | 22 | POWER - CTRL MOD. AMBIENT LIGHTING | |
| 3 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 4 | CR204 (VT) | 20 | SENSOR - SEATBELT BUCKLE (SEATBELT REMINDER) ROW 2 DRIVER SIDE | |
| 5 | RR172 (GN-VT) | 20 | CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES | |
| 6 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 7 | CR180 (YE) | 20 | CTRL MOD. - INFLATABLE SEATBELT ROW 2 DRIVER + | |
| 8 | RR180 (BN-GN) | 20 | CTRL MOD. - INFLATABLE SEATBELT ROW 2 DRIVER - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1524 |
Service Part Number: CU2Z-14S411-ALB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Sliding Door Connector - Inline Inflator - Safety Belt |
| Pigtail Kit Part Number WPT-1276 |
Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Connector - Inline |
