Connector End View C3393 - 4X4 Switch Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
4X4 SWITCH MODULE
COLOR
HARNESS
14B079
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW

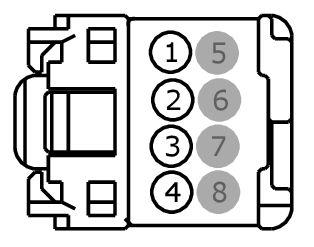

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP32 (VT-RD) | 22 | FUSE - OR CIRCUIT BREAKER | |
| 2 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 2 | VDB26 (GY-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 3 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 3 | VDB25 (GN-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 4 | GD216 (BK-VT) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-995 |
Service Part Number: 3U2Z-14S411-BGB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Center Stack (Multipurpose) Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Multifunction (Wiper) Switch - Seat (3rd Row) Switch - Third Row Power Folding Seat Switch - Traction Control |
