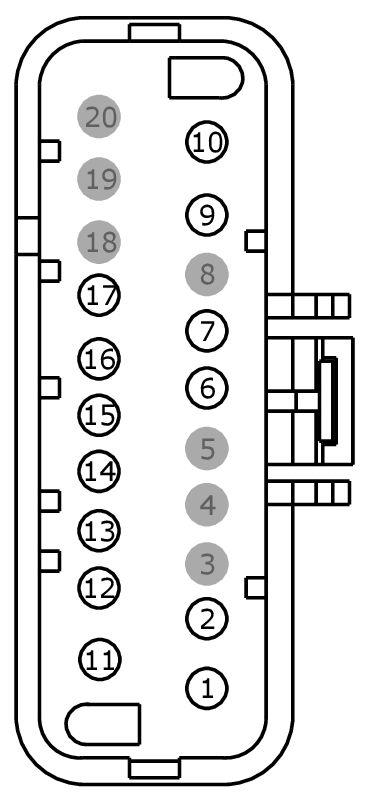

Connector End View C3387 - Front Seat Control Switch LH

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

FRONT SEAT CONTROL SWITCH LH

COLOR

HARNESS

14D231

BASE PART #

PART# N/A

SERVICE PIGTAIL

NOT AVAILABLE

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS96 (WH-OG)	20	SWITCH - SEAT MULTICONTOUR # LESS (LLS)
2	CPS18 (BN-GN)	18	SWITCH - DRIVER LUMBAR PUMP
2	CPS95 (GN-VT)	20	SWITCH - SEAT MULTICONTOUR # MORE (LMR)
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	CPS19 (GY-VT)	18	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE
7	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD
7	CPS30 (VT-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD
8	*	*	Not Used
9	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD
9	CPS29 (WH-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD
10	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH
10	CBX04 (WH-RD)	16	POWER - SEAT # MEMORY MODULE HIGH CURRENT
11	GD904 (BK-BU)	14	GROUND - DRIVER SEAT # SEAT SWITCH
11	GD904 (BK-BU)	16	GROUND - DRIVER SEAT # SEAT SWITCH
12	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
12	CPS27 (BU-BN)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
13	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
13	CPS26 (YE-BU)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
14	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD
14	CPS28 (GN)	20	SWITCH - SEAT ADJUST. DRIVER REARWARD
15	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD
15	CPS23 (GN-VT)	20	SWITCH - SEAT ADJUST. DRIVER FORWARD
16	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP
16	CPS25 (WH-VT)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP
17	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN
17	CPS24 (GY)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
