Connector End View C3346 - Second Row Seat Release Easy Entry Motor RH

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

SECOND ROW SEAT RELEASE EASY ENTRY MOTOR RH

COLOR

HARNESS

14B686

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPSD0 (GN-WH)	18	RELAY - 2ND ROW SEAT RELEASE RIGHT
2	GD238 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT

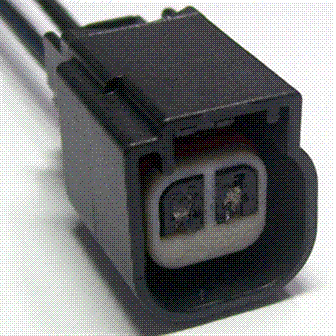

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1052

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JLB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

A/C Compressor Clutch

Actuator - Door Lock

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - LH - Sliding Door

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Actuator - Door Lock - RH - Sliding Door

Actuator - Liftgate Glass

Lamp - Headlamp - Low Beam

Lamp - License

Lamp - Side Marker

Motor - Power Window - LH - Rear

Pump - Fuel (External)

Sensor - Side Impact

Solenoid - Brake Shift Park Interlock

Speaker - Door (front)

Speaker - Door (rear)

Speaker - Front

Speaker - Rear

Speaker - Tweeter - LH - Front

Speaker - Tweeter - LH - Rear

Speaker - Tweeter - RH - Front

Speaker - Tweeter - RH - Rear
