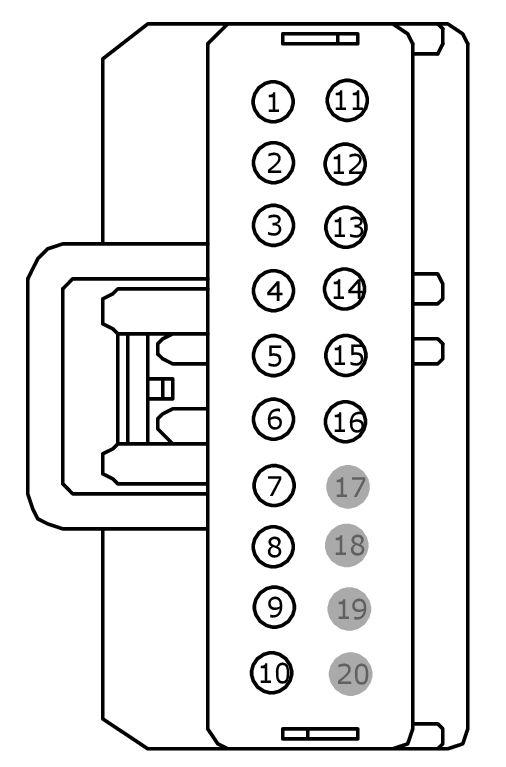

Connector End View C3299D - Driver Seat Module (DSM)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
DRIVER SEAT MODULE (DSM)
COLOR
HARNESS
14D231
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS03 (VT-GY) | 18 | CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP | |
| 2 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 3 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | CPP02 (BN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD | |
| 5 | CPP01 (WH-OG) | 18 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD | |
| 6 | CPS25 (WH-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | |
| 7 | CPS24 (GY) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | |
| 8 | CPS27 (BU-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 9 | CPS03 (VT-GY) | 18 | CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP | |
| 10 | VPS09 (BN-BU) | 20 | SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD | |
| 11 | VPS10 (BU-GN) | 20 | SENSOR - DRIVER SEAT HEIGHT FRONT / TILT | |
| 12 | VPS11 (GN-BN) | 20 | SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL | |
| 13 | RPS12 (YE-VT) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | |
| 14 | CPS26 (YE-BU) | 20 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | |
| 15 | CPS23 (GN-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 16 | CPS28 (GN) | 20 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |
