Connector End View C3216 - Front Seat Power Lumbar Assembly RH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FRONT SEAT POWER LUMBAR ASSEMBLY RH
COLOR
HARNESS
14D233
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| A | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | Expedition |
| A | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | Navigator |
| B | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | Expedition |
| B | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | Navigator |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-687 |

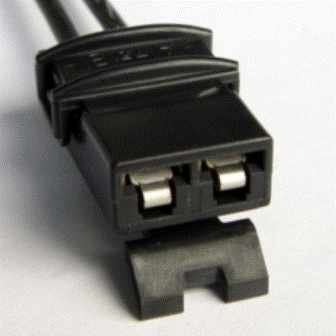

Service Part Number: 3U2Z-14S411-ZAA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Air Suspension Compressor Switch - Dimmer (Instrument Panel) |
