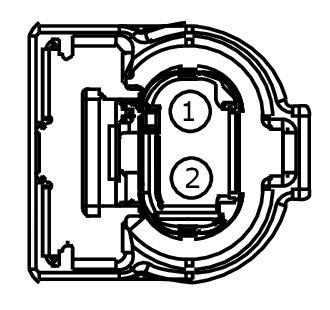

Connector End View C3212 - Side Impact Sensor RH C-Pillar
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
SIDE IMPACT SENSOR RH C-PILLAR
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VR220 (VT-OG) | 18 | SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE | |
| 2 | RR134 (BN-BU) | 18 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1469 |
Service Part Number: GU2Z-14S411-KA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Side Impact Sensor - Transfer Case Temperature Sensor - Transmission Fluid Temperature Solenoid - Variable Oil Pump Control |
