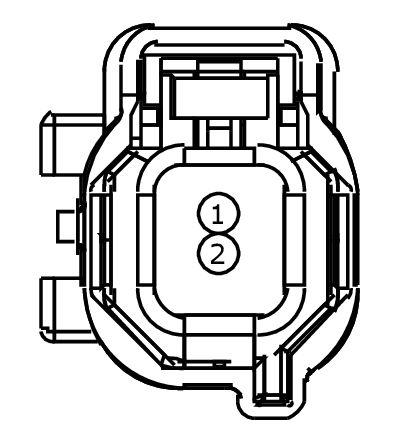

Connector End View C3185B - Running Board Motor Assembly LH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
RUNNING BOARD MOTOR ASSEMBLY LH
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPRC8 (VT-GY) | 22 | CTRL MOD. - POWER RUNNING BOARD # ILLUMINATION LEFT | |
| 2 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1116 |
Service Part Number: AU2Z-14S411-BJA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Running Board Sensor - Knock Sensor - Speed Sensor - Water in Fuel |
