Connector End View C3139 - Family Entertainment System
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FAMILY ENTERTAINMENT SYSTEM
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB46 (WH-BU) | 16 | FUSE - OR CIRCUIT BREAKER | |
| 2 | GD233 (BK) | 16 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 2 | GD233 (BK) | 18 | GROUND - COWL SIDE/PILLAR A LEFT |

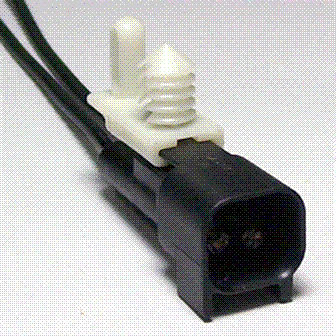

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
