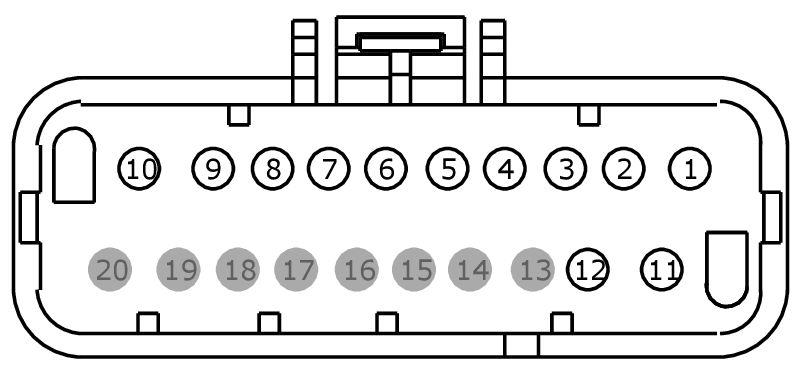

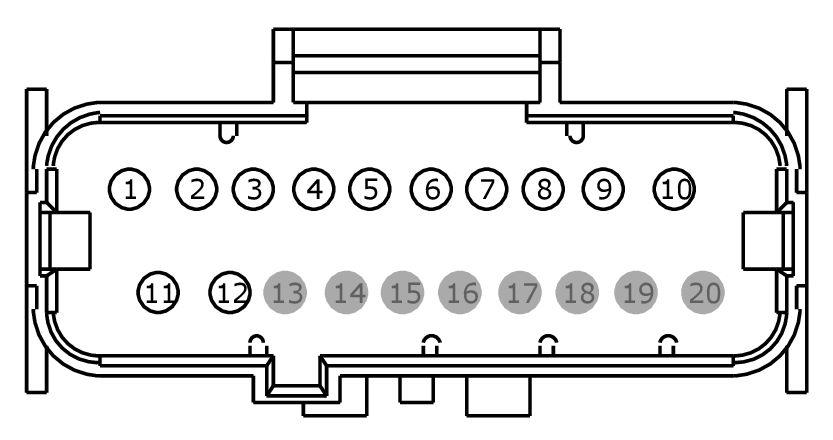

Connector End View C3137 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
NOT AVAILABLE
MALE
HARNESS 14D231
FEMALE
HARNESS 14D232
| Pin | Circuit | Gauge | Qualifier |
| 1 | CPS60 (BN) | 16 | |
| 2 | CPS59 (GN) | 16 | |
| 3 | VPS63 (BU-OG) | 20 | |
| 4 | RPS12 (YE-VT) | 20 | |
| 5 | CPSF0 (BU) | 16 | |
| 6 | CPSF1 (GN-BN) | 16 | |
| 7 | VPSF4 (GN) | 20 | |
| 8 | CHS12 (YE-GN) | 16 | |
| 9 | GD382 (BK-GY) | 16 | |
| 10 | CPSL8 (YE-VT) | 16 | |
| 11 | CPSL9 (WH-BU) | 16 | |
| 12 | CPSM6 (WH-OG) | 20 | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CPS60 (BN) | 20 | |
| 2 | CPS59 (GN) | 20 | |
| 3 | VPS63 (BU-OG) | 20 | |
| 4 | RPS12 (YE-VT) | 20 | |
| 5 | CPSF0 (BU) | 20 | |
| 6 | CPSF1 (GN-BN) | 20 | |
| 7 | VPSF4 (GN) | 20 | |
| 8 | CHS12 (YE-GN) | 16 | |
| 9 | GD382 (BK-GY) | 16 | |
| 10 | CPSL8 (VT-GN) | 14 | |
| 11 | CPSL9 (WH-BU) | 14 | |
| 12 | CPSM6 (WH-OG) | 20 | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * |
