Connector End View C3135 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW

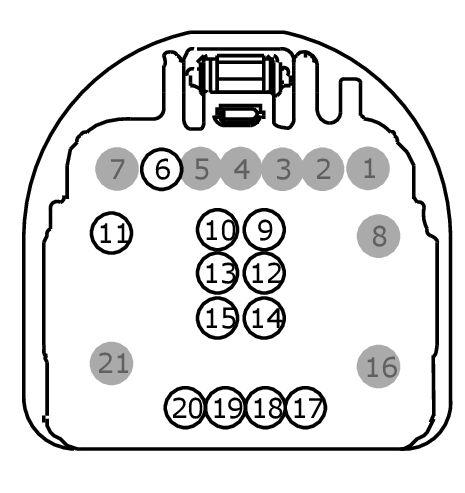

MALE
HARNESS 14B687

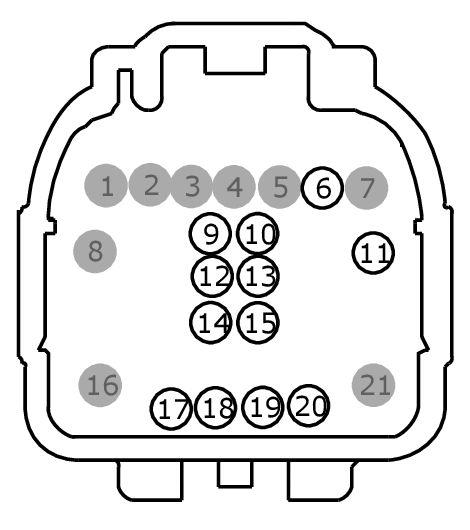

FEMALE
HARNESS 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | CPSC9 (BU-OG) | 18 | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | VHS42 (GN) | 22 | |
| 10 | CHS58 (WH) | 18 | |
| 11 | GD233 (BK) | 14 | |
| 12 | CPSD2 (VT-GN) | 18 | |
| 13 | RHS41 (GN-BN) | 22 | |
| 14 | RR172 (GN-VT) | 20 | |
| 15 | CR204 (VT) | 20 | |
| 16 | * | * | |
| 17 | CR180 (YE) | 20 | |
| 18 | RR180 (BN-GN) | 20 | |
| 19 | VDN13 (BN) | 22 | |
| 20 | CBX07 (GN-RD) | 22 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | CPSC9 (BU-OG) | 18 | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | VHS42 (GN) | 20 | |
| 10 | CHS58 (WH) | 18 | |
| 11 | GD233 (BK-YE) | 14 | |
| 11 | GD238 (BK-WH) | 14 | |
| 12 | CPSD2 (VT-GN) | 18 | |
| 13 | RHS41 (GN-BN) | 20 | |
| 14 | RR172 (GN-VT) | 20 | |
| 15 | CR204 (VT) | 20 | |
| 16 | * | * | |
| 17 | CR180 (YE) | 20 | |
| 18 | RR180 (BN-GN) | 20 | |
| 19 | VDN13 (BN) | 20 | |
| 20 | CBX07 (GN-RD) | 20 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1463 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
