Connector End View C3133 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW

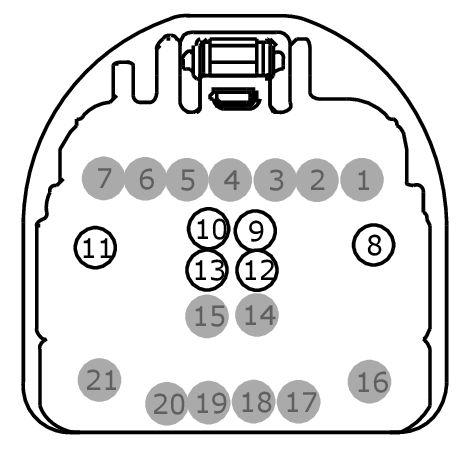

MALE
HARNESS 14A411

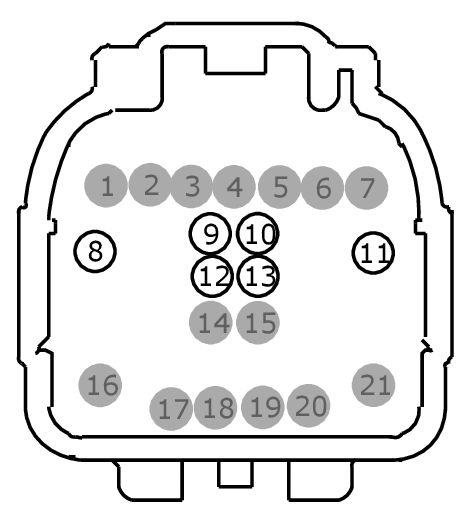

FEMALE
HARNESS 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | CPSD4 (WH-BN) | 18 | |
| 9 | RR172 (GN-VT) | 20 | |
| 10 | CR205 (WH-OG) | 20 | |
| 11 | GD238 (BK-WH) | 14 | |
| 11 | GD238 (BK-WH) | 18 | |
| 12 | VDN13 (BN) | 22 | |
| 13 | CBX07 (GN-RD) | 22 | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | CPSD4 (WH-BN) | 18 | |
| 9 | RR172 (GN-VT) | 20 | |
| 10 | CR205 (WH-OG) | 20 | |
| 11 | GD238 (BK-WH) | 14 | |
| 12 | VDN13 (BN) | 22 | |
| 13 | CBX07 (GN-RD) | 22 | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1561 |
Service Part Number: JU2Z-14S411-ARA Gauge: 14 16 20 Pin material: Tin Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1559 |
Service Part Number: FU2Z-14S411-RB Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
