Connector End View C3075 - Front Seat Rear Height Motor RH

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

FRONT SEAT REAR HEIGHT MOTOR RH

COLOR

HARNESS

14D230

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS04 (YE-OG)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL DOWN
2	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL
3	CPS05 (BU-WH)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL UP
4	RPS12 (YE-VT)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -

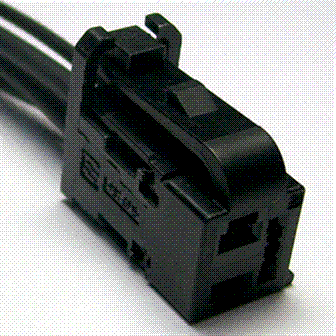

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1311

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BAA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Seat Height (Front)

Motor - Seat Recline
