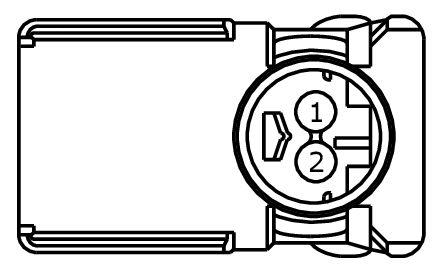

Connector End View C3065 - SEATBELT Anchor PRETENSIONER, Driver

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

SEATBELT ANCHOR PRETENSIONER, DRIVER

COLOR

HARNESS

14A005

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR120 (BU-OG)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE +
2	RR120 (BN-GN)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE -

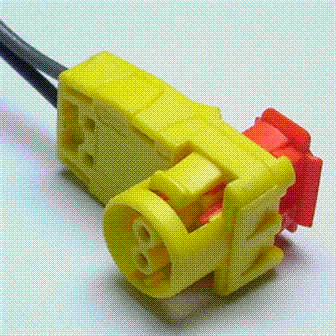

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1467

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BKB

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
