Connector End View C3050 - Inline

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

INLINE

COLOR

BASE PART #

SERVICE PIGTAIL

NOT AVAILABLE

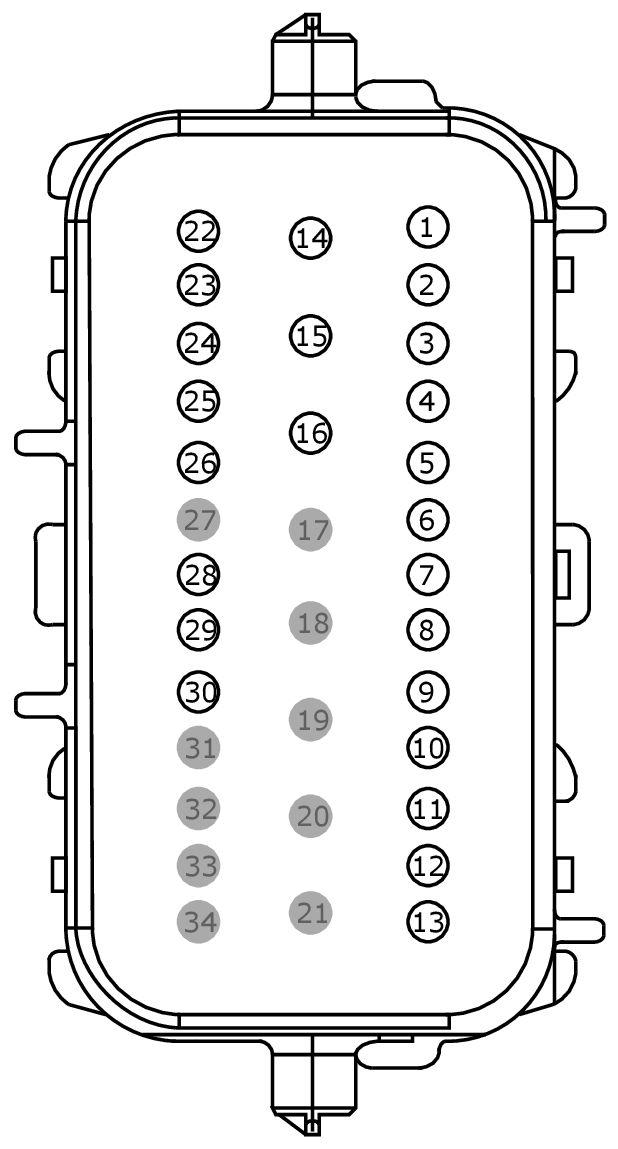

MALE

HARNESS 14A005

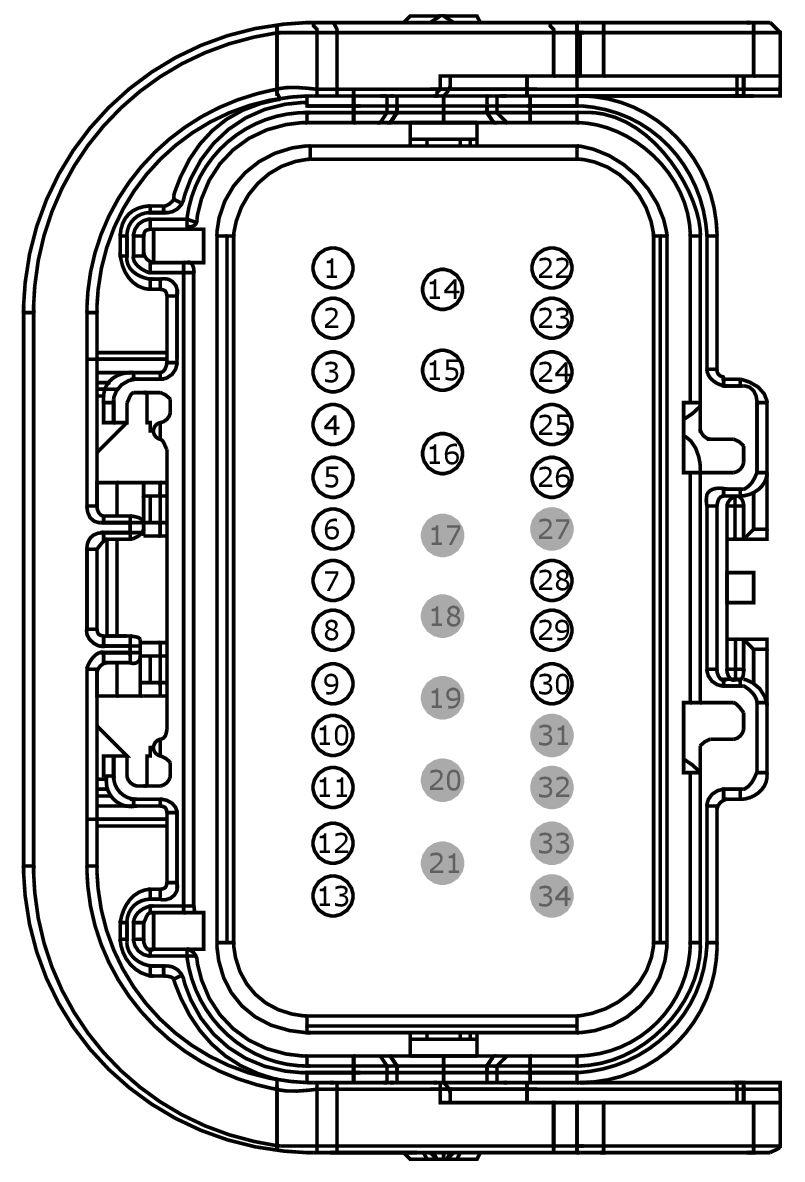

FEMALE

HARNESS 14D230

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	VDN15 (BU-GY)	20
2	CBX07 (GN-RD)	20
3	VDB06 (GY-OG)	20
4	VDB07 (VT-OG)	20
5	RH111 (GY-BU)	20
6	RPSJ5 (GY)	20
7	CPSJ5 (BU)	20
8	VHS93 (WH-BN)	20
9	VHS94 (BN)	20
10	CPS33 (WH)	20
11	GD238 (BK-WH)	20
12	CHS90 (GY-BU)	16
13	RHS90 (YE-OG)	16
14	CHS88 (BN-GN)	14
15	RHS88 (GY-BN)	14
16	CHS07 (GY-BU)	14
17	*	*
18	*	*
19	*	*
20	*	*
21	*	*
22	RHSA5 (WH-OG)	20
23	CHSA5 (BN-GN)	20
24	RHS10 (BU-OG)	20
25	CPS39 (GY-YE)	20
26	CPS40 (VT-GY)	20
27	*	*
28	VDN13 (BN)	20
29	RR1A1 (WH-BN)	20
30	CPS38 (GN-BU)	20
31	*	*
32	*	*
33	*	*

Pin	Circuit	Gauge	Qualifier
1	VDN15 (BU-GY)	20
2	CBX07 (GN-RD)	20
3	VDB06 (GY-OG)	20
4	VDB07 (VT-OG)	20
5	RHS11 (GY-BU)	20
6	RPSJ4 (WH-OG)	20
7	CPSJ4 (BU)	20
8	VHS93 (WH-BN)	20
9	VHS94 (BN)	20
10	CPS33 (WH)	20
11	GD908 (BK)	20
12	CHS90 (GY-BU)	18
13	RHS90 (YE-OG)	18
14	CHS88 (BN-GN)	16
15	RHS88 (GY-BN)	16
16	CHS07 (GY-BU)	16
17	*	*
18	*	*
19	*	*
20	*	*
21	*	*
22	RHSA5 (BU-GY)	20
23	CHSA5 (BN)	20
24	RHS10 (BU-OG)	20
25	CPS39 (GY-YE)	18
26	CPS40 (VT-GY)	18
27	*	*
28	VDN13 (BN)	20
29	CR147 (GN-OG)	20
30	CPS38 (GN-BU)	20
31	*	*
32	*	*
33	*	*
