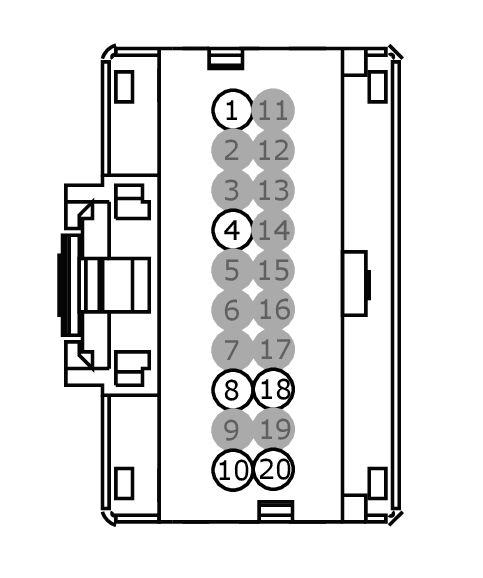

Connector End View C2602B - Column And Pedal Memory [BCMB] Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
COLUMN AND PEDAL MEMORY [BCMB] MODULE
COLOR
HARNESS
14401
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPP02 (BN) | 22 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | CPP10 (BN-BU) | 22 | SWITCH - ADJUST. PEDALS # REARWARD | |
| 9 | * | * | Not Used | |
| 10 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | CPP09 (VT-OG) | 22 | SWITCH - ADJUST. PEDALS # FORWARD | |
| 19 | * | * | Not Used | |
| 20 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
