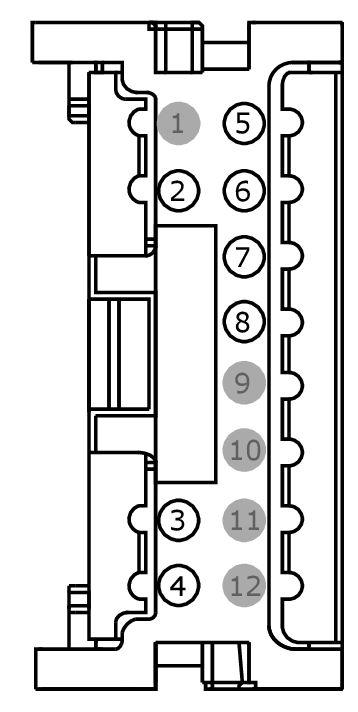

Connector End View C2491 - Steering Wheel Switch RH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
STEERING WHEEL SWITCH RH
COLOR
HARNESS
14672
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | GD215 (*) | * | GROUND | |
| 3 | LX103 (*) | * | A/D CHANNEL 1 | |
| 4 | LX104 (*) | * | A/D CHANNEL 2 | |
| 5 | RX102 (*) | * | RETURN | |
| 6 | LX105 (*) | * | A/D CHANNEL 3 | |
| 7 | LX106 (*) | * | A/D CHANNEL 4 | |
| 8 | VLN04 (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |
