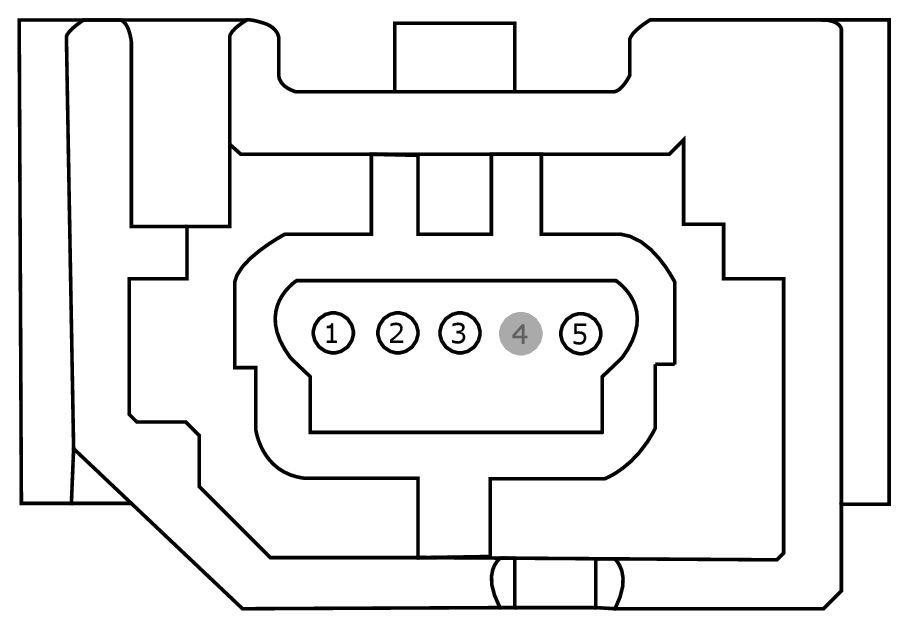

Connector End View C2383B - Sync Module [APIM]
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
SYNC MODULE [APIM]
COLOR
HARNESS
14401
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (*) |
* |
USB1 VBUS |
| 2 |
* (*) |
* |
USB1 D- |
| 3 |
* (*) |
* |
USB1 D+ |
| 4 |
* |
* |
Not Used |
| 5 |
* (*) |
* |
USB1 GND |
