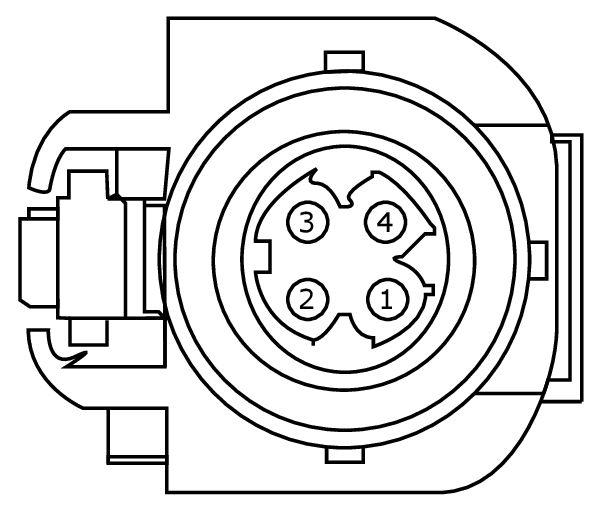

Connector End View C2253 - Front Display Interface Module (FDIM)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FRONT DISPLAY INTERFACE MODULE (FDIM)
COLOR
HARNESS
PIA
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (*) |
* |
GROUNDS |
| 2 |
* (*) |
* |
COMMUNICATION - |
| 3 |
* (*) |
* |
POWER |
| 4 |
* (*) |
* |
COMMUNICATION + |
