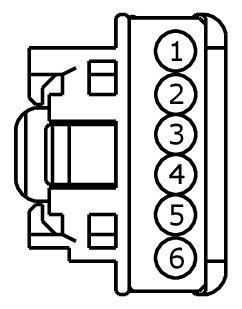

Connector End View C2247 - In-Vehicle Temperature/Humidity Sensor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
IN-VEHICLE TEMPERATURE/HUMIDITY SENSOR
COLOR
HARNESS
14401/14C210
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RH103 (GY) | 26 | CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - | |
| 1 | RH103 (GY) | 22 | CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - | |
| 1 | RH103 (GY) | 22 | CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - | |
| 2 | VH414 (GN-BU) | 22 | SENSOR - FRONT IN-CAR TEMPERATURE 1 OR SINGLE | |
| 2 | VH414 (GN-BU) | 26 | SENSOR - FRONT IN-CAR TEMPERATURE 1 OR SINGLE | |
| 2 | VH414 (GN-BU) | 22 | SENSOR - FRONT IN-CAR TEMPERATURE 1 OR SINGLE | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | |
| 4 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | |
| 4 | VH413 (WH-BU) | 26 | SENSOR - HUMIDITY | |
| 4 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | |
| 5 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | |
| 6 | CBP21 (BU-GY) | 22 | FUSE - OR CIRCUIT BREAKER |

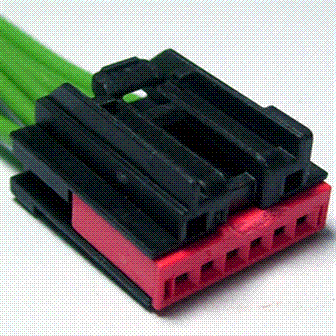

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1242 |
Service Part Number: 3U2Z-14S411-MJB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Indicator - Passenger Airbag Deactivation (PADI) Sensor - EATC In Car Temperature Switch - Multifunction |
