Connector End View C2129 - Headlamp Control Module (HCM)

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

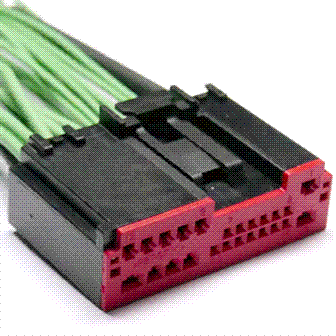

HEADLAMP CONTROL MODULE (HCM)

COLOR

HARNESS

14401

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

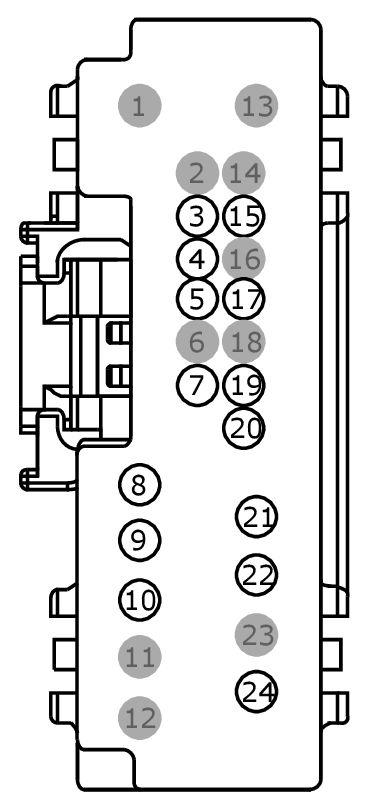

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	RCD27 (WH-GN)	22	CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR FRONT LEFT -
4	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE
5	VCD12 (VT-WH)	22	SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) REAR LEFT
6	*	*	Not Used
7	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
8	LCD27 (YE-GY)	22	CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR FRONT LEFT +
9	DLF32 (BK)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) D
10	VLF32 (YE)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) +
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	RCD25 (GY)	22	CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR LEFT -
16	*	*	Not Used
17	VCD10 (BN)	22	SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) FRONT LEFT
18	*	*	Not Used
19	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
20	LCD25 (GN-WH)	22	CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR REAR LEFT +
21	VLF33 (BU)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) +
22	DLF33 (BK)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) D
23	*	*	Not Used
24	CBP20 (YE-VT)	22	FUSE - OR CIRCUIT BREAKER

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1550

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AJA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses

Lamp - Front Cornering/ Turn

Module - Driver Door

Module - Headlamp Control

Module - Heated Seat

Module - Seat Memory

Module - Upfitter Interface
