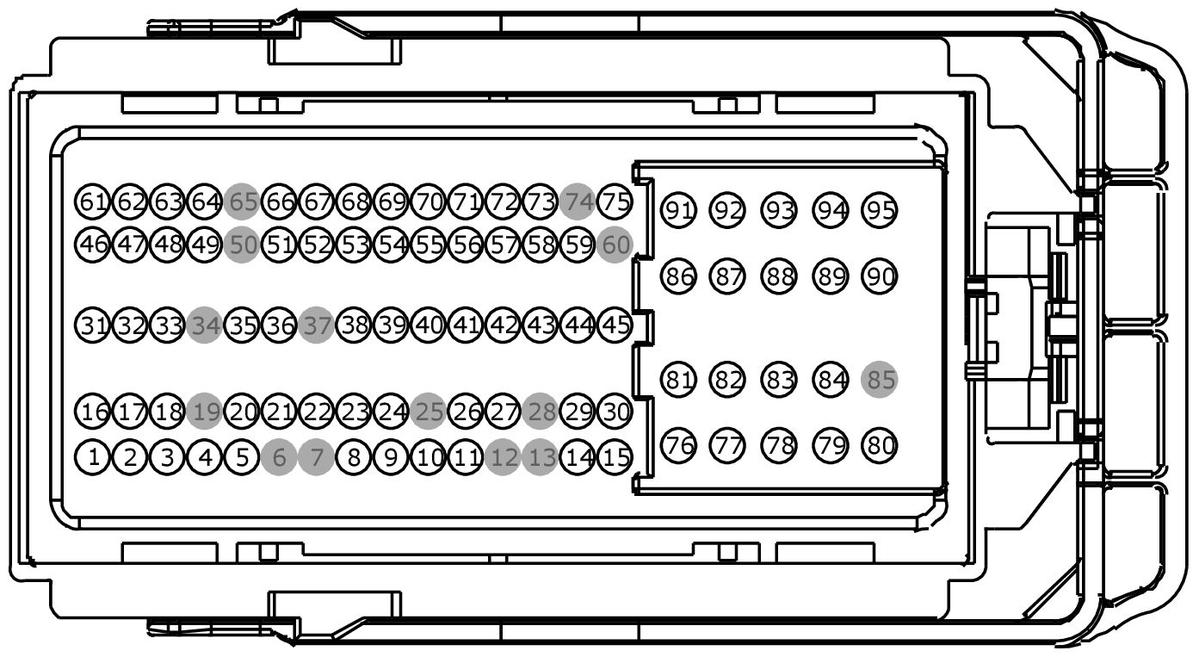

Connector End View C1915E - Powertrain Control Module (Pcm)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
POWERTRAIN CONTROL MODULE (PCM)
COLOR
HARNESS
12C508
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE818 (BN) | 18 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) | |
| 2 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) | |
| 3 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
| 4 | LE134 (GY) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 5 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+] | |
| 9 | RE324 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] | |
| 10 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
| 11 | CE235 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | RE354 (WH-BU) | 18 | CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) - | |
| 15 | VE354 (VT) | 18 | CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) + | |
| 16 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) | |
| 17 | VE804 (GN-BN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + | |
| 18 | VE763 (YE) | 18 | SENSOR - CRANKCASE VENTILATION MONITOR (CVM) | |
| 19 | * | * | Not Used | |
| 20 | RE401 (GN-BU) | 18 | CTRL MOD. - POWERTRAIN # SCREEN GROUNDS - | |
| 21 | VE727 (BU-BN) | 18 | SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) | |
| 22 | VE850 (WH-VT) | 18 | SENSOR - WASTE GATE CONTROL PRESSURE (WGCP) | |
| 23 | VE836 (VT-GN) | 18 | SENSOR - WASTEGATE POSITION (WGT_PS) | |
| 24 | VE723 (GN-WH) | 18 | SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + | |
| 25 | * | * | Not Used | |
| 26 | VE707 (GN-VT) | 18 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + | |
| 27 | VE711 (YE-VT) | 18 | SENSOR - CRANKSHAFT POSITION (CKPP) + | |
| 28 | * | * | Not Used | |
| 29 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 30 | CE263 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 2 | |
| 31 | CE443 (BN-VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 | |
| 32 | CMC24 (GY) | 18 | SWITCH - OIL PRESSURE | |
| 33 | VE728 (GN) | 18 | SENSOR - FUEL RAIL TEMPERATURE (FRT) | |
| 34 | * | * | Not Used | |
| 35 | RE134 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | |
| 36 | VE712 (BU-GY) | 18 | SENSOR - CYLINDER HEAD TEMPERATURE (CHT) | |
| 37 | * | * | Not Used | |
| 38 | VE761 (YE) | 18 | SENSOR - FUEL LOW PRESSURE (FLPS) | |
| 39 | CBK01 (BU) | 18 | FUSE - 1 OR CIRCUIT BREAKER (VPWR F) | |
| 40 | VE706 (BN-BU) | 18 | SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + | |
| 41 | CE303 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) | |
| 42 | CE266 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 5 | |
| 43 | CE262 (GN) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 1 | |
| 44 | CE236 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) | |
| 45 | CE264 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 3 | |
| 46 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) | |
| 47 | LE453 (BN-BU) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SIA-21) | |
| 48 | LE452 (OG) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) | |
| 49 | LE449 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) | |
| 50 | * | * | Not Used | |
| 51 | LE448 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) | |
| 52 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 53 | RE135 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - | |
| 54 | LE143 (GY) | 18 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 + | |
| 55 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) | |
| 56 | CE307 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E) | |
| 57 | CE308 (VT-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F) | |
| 58 | CE265 (WH) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 4 | |
| 59 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) | |
| 60 | * | * | Not Used | |
| 61 | CE442 (YE-GY) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 | |
| 62 | LE450 (WH) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) | |
| 63 | LE451 (BN-YE) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) | |
| 64 | VE827 (WH-GN) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) | |
| 65 | * | * | Not Used | |
| 66 | VE826 (BN-VT) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) | |
| 67 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - | |
| 68 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] | |
| 69 | LE144 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 + | |
| 70 | CE305 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) | |
| 71 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) | |
| 72 | CE267 (BU-GY) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 6 | |
| 73 | VE821 (WH-VT) | 18 | SENSOR - VACUUM RESERVOIR PRESSURE (VRP) | |
| 74 | * | * | Not Used | |
| 75 | CE435 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # TURBO CONTROL VALVE | |
| 76 | CH307 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR) | |
| 77 | RE466 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR - | |
| 78 | CE466 (BU-BN) | 18 | CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR + | |
| 79 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | |
| 80 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | |
| 81 | RE209 (WH-GN) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) - | |
| 82 | CE209 (BN) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + | |
| 83 | RE208 (BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - | |
| 84 | CE208 (YE-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + | |
| 85 | * | * | Not Used | |
| 86 | CE205 (GN-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + | |
| 87 | CE207 (VT-GY) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + | |
| 88 | CE210 (GN-WH) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + | |
| 89 | CE206 (GY-YE) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + | |
| 90 | CE226 (YE-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | |
| 91 | RE205 (YE-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - | |
| 92 | RE207 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - | |
| 93 | RE210 (BN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) - | |
| 94 | RE206 (BU-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - | |
| 95 | RE226 (GN-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
