Oil Pan and Strainer: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before installing the oil pan, clean the mating surface of oil pan and cylinder block.
  1. Make sure that the seals (A) are installed securely on the baffle plate in a direction as shown in the figure below.
    NOTE: Use a new seal.
    Fig 1: Identifying Baffle Plate Seals
    G07679945Courtesy of SUBARU OF AMERICA, INC.
  2. Install the baffle plate.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  3. Install the oil strainer to cylinder block.
    NOTE: Use new O-rings.

    Tightening torque:

    10 N.m (1.0 kgf-m, 7.4 ft-lb)

  4. Tighten the oil strainer stay together with the baffle plate.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  5. Apply liquid gasket to the mating surfaces of oil pan, and install the oil pan.
    NOTE:
    • Use a new gasket.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100) or equivalent

    Fig 2: Identifying Liquid Gasket Applying Area
    G07679946Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the bolts which install oil pan to cylinder block.

    Tightening torque:

    T1: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

    T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    T3: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

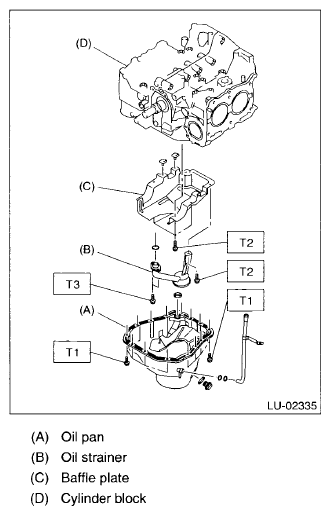

    Fig 3: Identifying Oil Pan, Oil Strainer, Baffle Plate And Cylinder Block With Mounting Screws
    G07679947Courtesy of SUBARU OF AMERICA, INC.
  7. Lower the engine onto front crossmember.
  8. Install the nuts which hold the engine mounting to the front crossmember.
    NOTE: Make sure that the engine mounting nuts (A) and locator (B) are securely installed.

    Tightening torque:

    85 N.m (8.7 kgf-m, 62.7 ft-lb)

    Fig 4: Identifying Engine Mounting Nuts And Locator
    G07679948Courtesy of SUBARU OF AMERICA, INC.
  9. Install the front exhaust pipe. < refer to INSTALLATION , Front Exhaust Pipe.>
  10. Install the undercover. < refer to INSTALLATION , Front Under Cover.>
  11. Lower the vehicle.
    CAUTION: When lowering the vehicle, lower the lift up device and wire ropes at the same time.
  12. Remove the lifting device and wire ropes.
    Fig 5: Lifting Engine Using Lifting Device
    G07679949Courtesy of SUBARU OF AMERICA, INC.
  13. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

    T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

    Fig 6: Pitching Stopper And Mounting Screws With Torque Specifications
    G07679950Courtesy of SUBARU OF AMERICA, INC.
  14. Install the radiator upper brackets.

    Tightening torque:

    12 N.m (1.2 kgf-m, 8.9 ft-lb)

    Fig 7: Locating Radiator Upper Brackets And Mounting Screws
    G07679951Courtesy of SUBARU OF AMERICA, INC.
  15. Install the intercooler. < refer to INSTALLATION , Intercooler.>
  16. Install the air intake boot.

    Tightening torque:

    2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

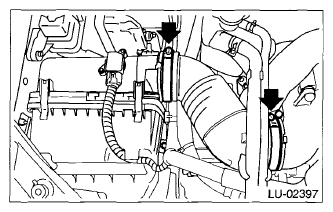

    Fig 8: Locating Air Intake Boot
    G07679952Courtesy of SUBARU OF AMERICA, INC.
  17. Install the air intake duct (rear). < refer to INSTALLATION , Air Intake Duct.>
  18. Connect the battery ground terminal.
    Fig 9: Connecting Battery Ground Terminal
    G07679953Courtesy of SUBARU OF AMERICA, INC.
  19. Install the collector cover.
  20. Refill the engine oil. < refer to REPLACEMENT , Engine Oil.>
