Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH seat shown, RH seat similar.

NOTE: Removal steps in this procedure may contain installation details.

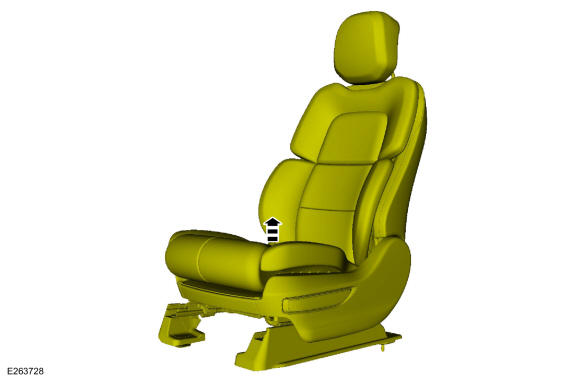

Raise the seat to the full up position.

Courtesy of FORD MOTOR COMPANY

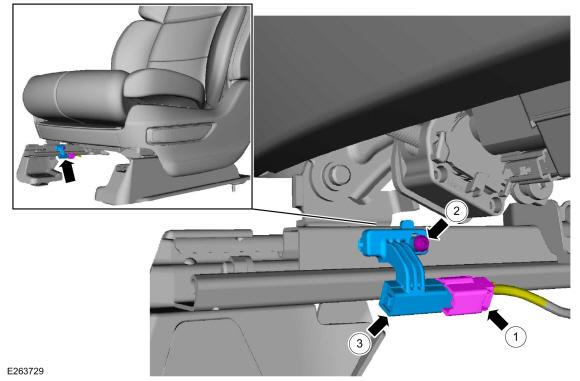

1. Disconnect the electrical connector.
2. Remove the screw.
  Torque: 8 lb.in (0.9 Nm)
3. Remove the seat position sensor.

Courtesy of FORD MOTOR COMPANY
