System Diagram - Occupant Classification System (OCS)

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

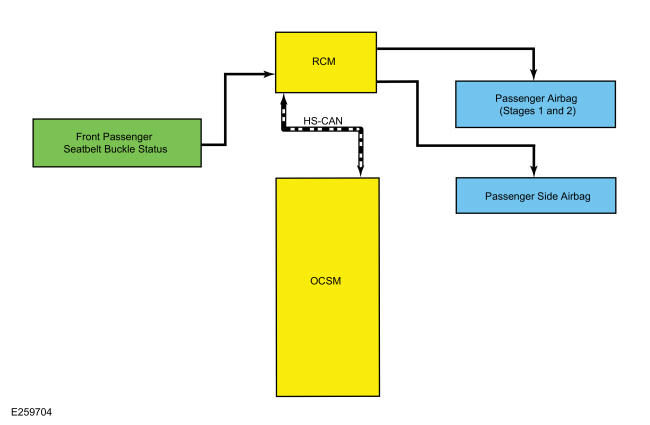

GFD275677Courtesy of FORD MOTOR COMPANY
Item Description
1 HS-CAN
2 RCM
3 OCSM
4 Front Passenger Seatbelt Buckle Status
5 Passenger Airbag (Stages 1 and 2)
6 Passenger Side Airbag
