Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

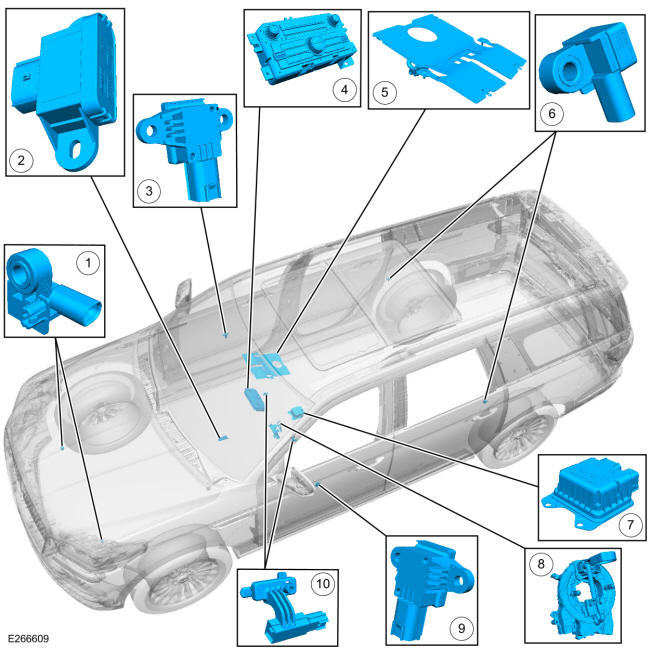

| Item | Description |
|---|---|
| 1 | LH and RH front impact severity sensors |
| 2 | BECMB |
| 3 | Passenger front door side impact sensor |
| 4 | FCIM (includes PAD indicator) |
| 5 | OCSM (includes OCS sensor and gel-filled bladder) |
| 6 | LH and RH C-pillar side impact sensors |
| 7 | RCM |
| 8 | Clockspring |
| 9 | Driver front door side impact sensor |
| 10 | Seat position sensors |

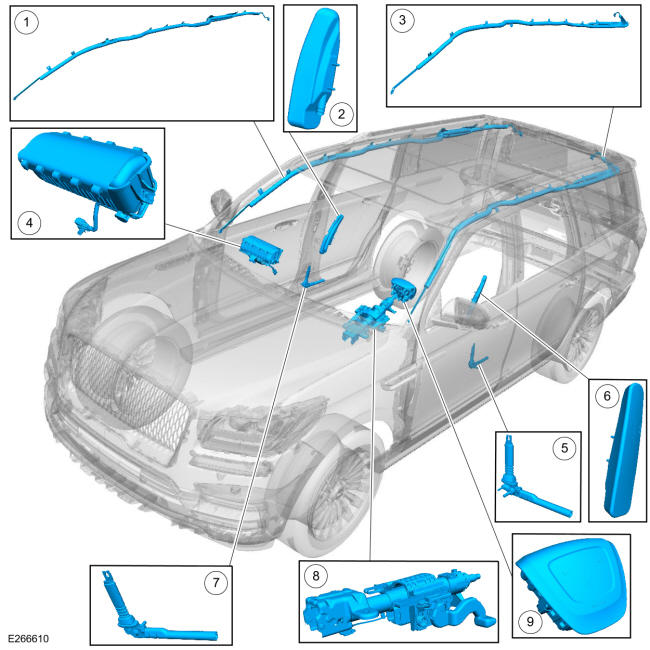

| Item | Description |
|---|---|
| 1 | RH side air curtain |
| 2 | Passenger side airbag |
| 3 | LH side air curtain |
| 4 | Passenger airbag (includes canister vent) |
| 5 | Driver seatbelt anchor pretensioner |
| 6 | Driver side airbag |
| 7 | Passenger seatbelt anchor pretensioner |
| 8 | Deployable steering column |
| 9 | Driver airbag |

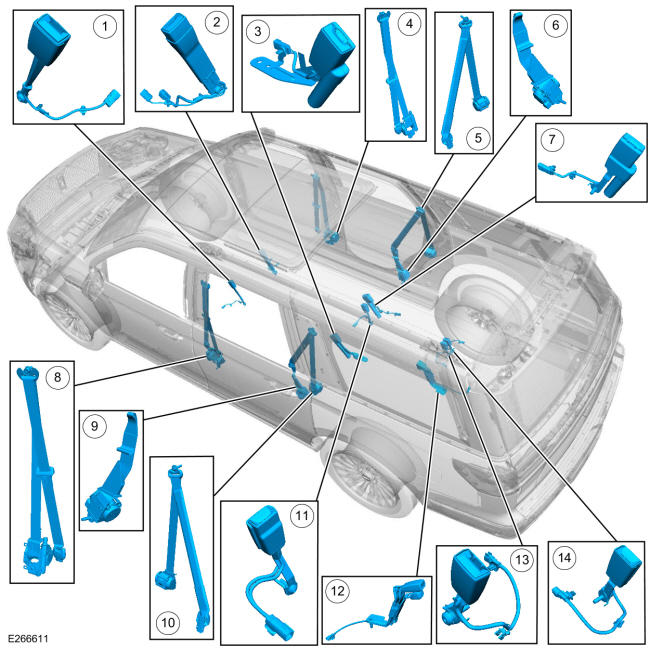

| Item | Description |
|---|---|
| 1 | Driver seatbelt buckle (includes buckle sensor) |
| 2 | Front passenger seatbelt buckle (includes buckle sensor) |
| 3 | LH second row outer seatbelt buckle assembly (if equipped with inflatable seatbelts) (includes seatbelt buckle, buckle sensor and seatbelt inflator) |
| 4 | Front passenger seatbelt retractor (includes retractor pretensioner) |
| 5 | RH second row outer seatbelt upper retractor (if equipped with inflatable seatbelts) |
| 6 | RH second row outer seatbelt lower retractor (if equipped with inflatable seatbelts) |
| 7 | RH second row outer seatbelt buckle assembly (if equipped with inflatable seatbelts) (includes seatbelt buckle, buckle switch and seatbelt inflator) |
| 8 | Driver seatbelt retractor (includes retractor pretensioner) |
| 9 | LH second row outer seatbelt lower retractor (if equipped with inflatable seatbelts) |
| 10 | LH second row outer seatbelt upper retractor (if equipped with inflatable seatbelts) |
| 11 | Second row center seatbelt buckle (if equipped with inflatable seatbelts) (includes seatbelt sensor) |
| 12 | LH third row outer seatbelt buckle (if equipped with inflatable seatbelts) (includes seatbelt sensor) |
| 13 | Third row center seatbelt upper retractor (if equipped with inflatable seatbelts) (includes seatbelt sensor) |
| 14 | RH third row outer seatbelt buckle (if equipped with inflatable seatbelts) (includes seatbelt sensor) |
