Third Row Seatbelt Retractor Bracket - Long Wheelbase: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH shown, RH similar.
  1. Lower the headliner. Refer to: Headliner - Lowering .

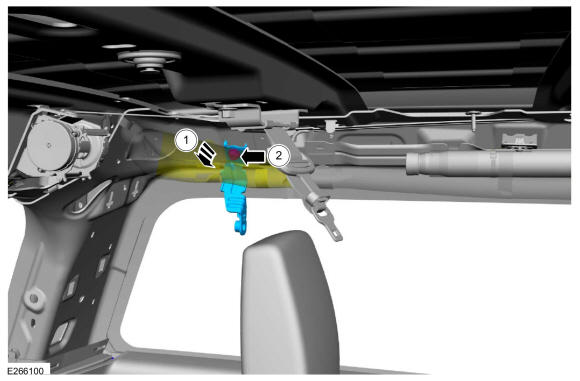

  2. Remove the third row seatbelt retractor bracket.

    1. Position the side curtain airbag aside.
    2. Remove the bolt.

      Torque: 30 lb.ft (40 Nm)

GFD275670Courtesy of FORD MOTOR COMPANY
