Third Row Center Seatbelt Retractor - Long Wheelbase: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Lower the headliner. Refer to: Headliner - Lowering .

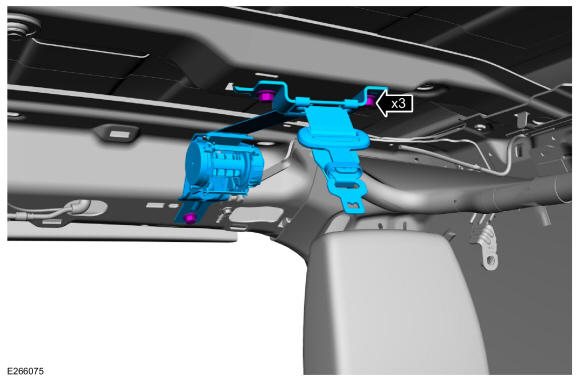

  2. Remove the bolts and the third row center seatbelt retractor.

    Torque: 30 lb.ft (40 Nm)

GFD275661Courtesy of FORD MOTOR COMPANY
