Seatbelt Shoulder Height Adjuster: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Remove the upper B-pillar trim panel. Refer to: B-PILLAR TRIM PANEL .
Remove the bolt and position front seatbelt retractor and pretensioner D-ring aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

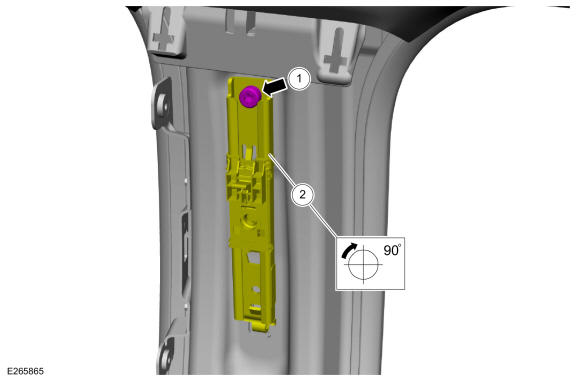

Position the seatbelt shoulder height adjuster.
1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Rotate the seatbelt shoulder height adjuster 90 degrees clockwise.
Courtesy of FORD MOTOR COMPANY

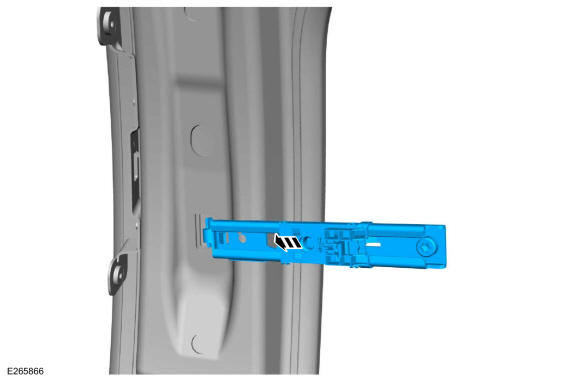

Remove the seatbelt shoulder height adjuster.

Courtesy of FORD MOTOR COMPANY
