Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH seat shown, LH seat similar.

Remove the front seat. Refer to: Front Seat .

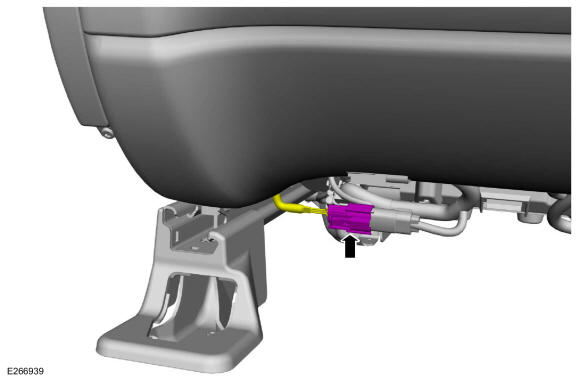

If equipped. Disconnect the front seatbelt buckle electrical connector.

Courtesy of FORD MOTOR COMPANY

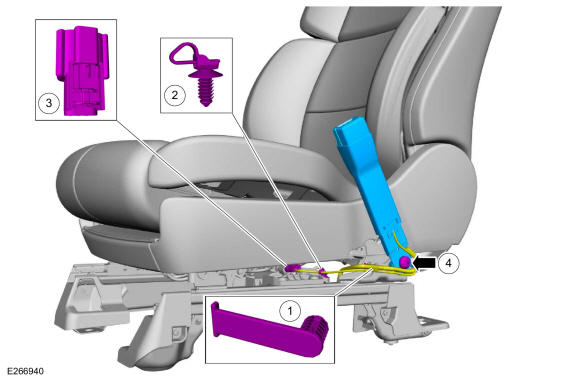

Remove the front seatbelt buckle.
1. Detach the wiring harness retainer.
2. Detach the wiring harness retainer.
3. Disconnect the electrical connector.
4. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
